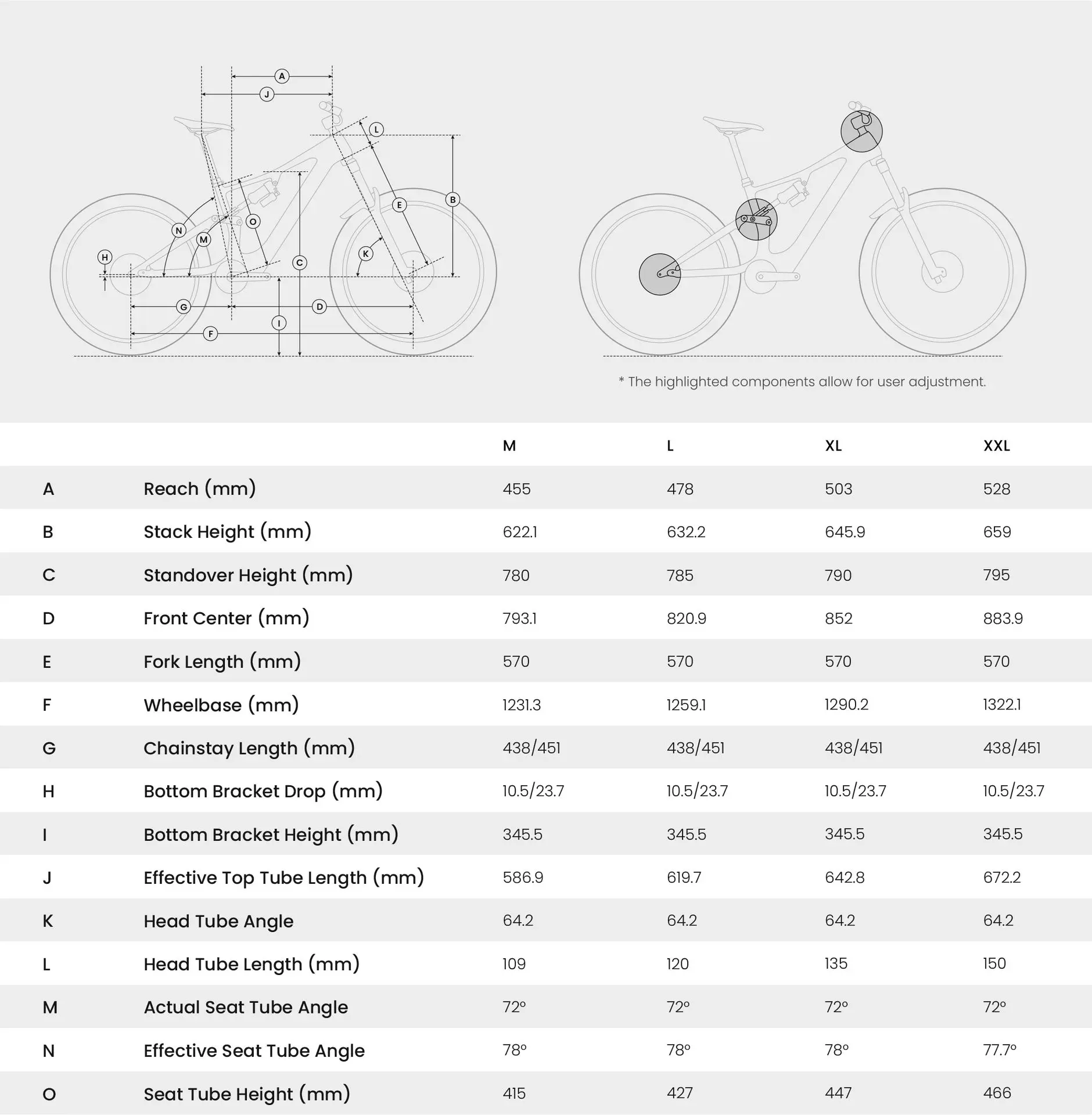

מידות
XXL | XL | L | M | |
525 מ"מ | 500 מ"מ | 475 מ"מ | 452 מ"מ | A Reach |
655 מ"מ | 641 מ"מ | 628 מ"מ | 618 מ"מ | B Stack Height |
795 מ"מ | 790 מ"מ | 785 מ"מ | 780 מ"מ | C
Standover Height
|
873 מ"מ | 844 מ"מ | 810 מ"מ | 782 מ"מ | D
Front Center
|
570 מ"מ | 570 מ"מ | 570 מ"מ | 570 מ"מ | E
Fork Length
|
1318 מ"מ | 1289 מ"מ | 1255 מ"מ | 1227 מ"מ | F
Wheelbase
|
445 מ"מ | 445 מ"מ | 445 מ"מ | 445 מ"מ | G
Chainstay Length
|
29 מ"מ | 29 מ"מ | 29 מ"מ | 29 מ"מ | H
Bottom Bracket Drop
|
345.5 מ"מ | 345.5 מ"מ | 345.5 מ"מ | 345.5 מ"מ | I
Bottom Bracket Height
|
676 מ"מ | 648 מ"מ | 620 מ"מ | 595 מ"מ | J Effective Top Tube Length |
64.5° | 64.5° | 64.5° | 64.5° | K Head Tube Angle |
145 מ"מ | 130 מ"מ | 115 מ"מ | 105 מ"מ | L Head Tube Length |
70° | 70° | 70° | 70° | M Actual Seat Tube Angle |
77° | 77° | 77° | 77° | N Effective Seat Tube Angle |
500 מ"מ | 470 מ"מ | 450 מ"מ | 430 מ"מ | O Seat Tube Height |
Compare Models

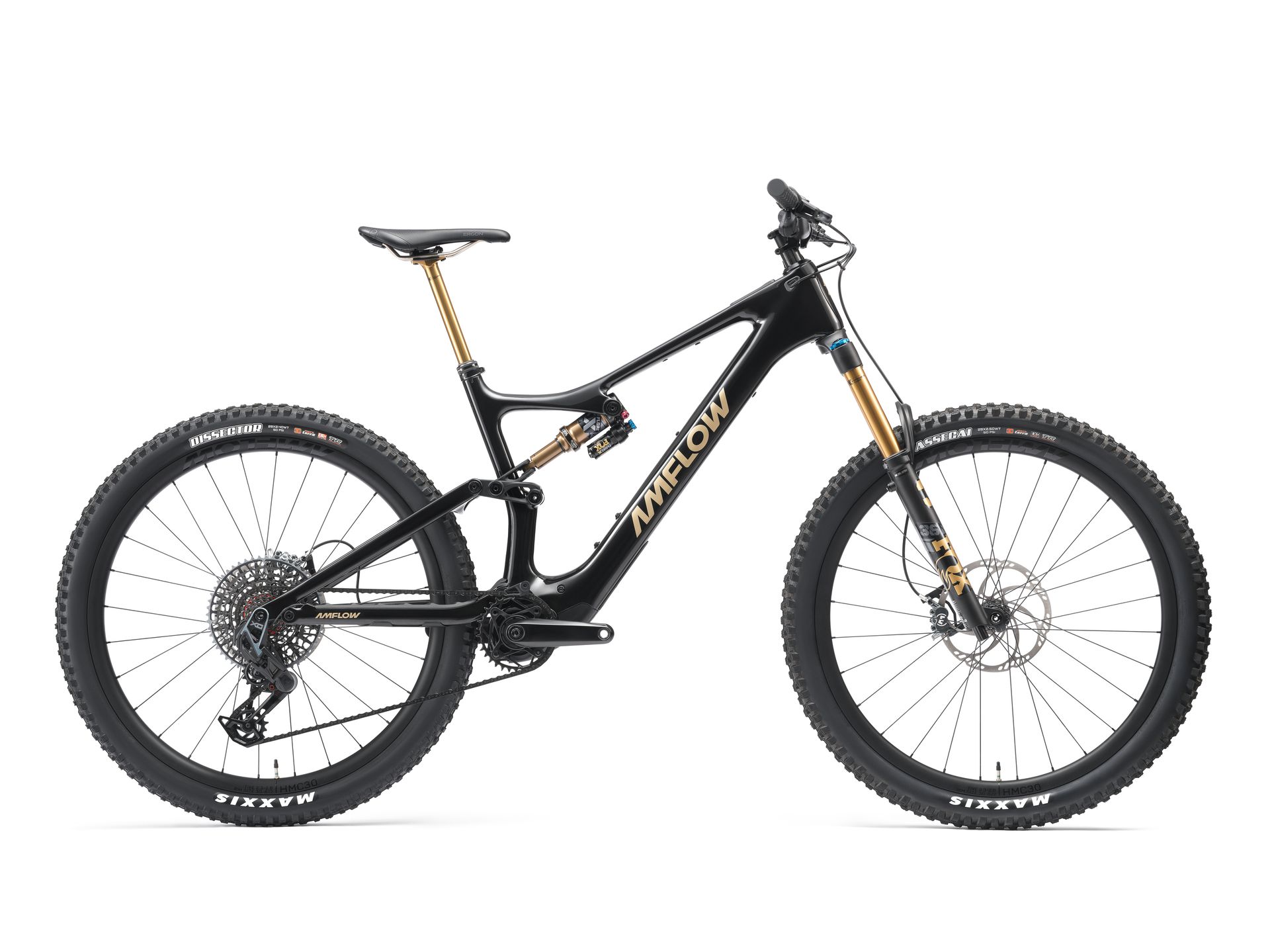

Amflow PL Carbon Pro (600Wh/800Wh)
Amflow PL carbon Frame
Cosmic Black
150mm rear travel
Compatible with 27.5" and 29" rear wheels
Frame
Avinox M1 Drive Unit: 105 N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 600Wh/800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
E-Bike System
FOX FLOAT X Factory
Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment
Rear Shock
FOX 36 Factory
160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake
Fork
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1295 Eagle Transmission 10-52T
Chain: SRAM X0 Eagle Transmission Flattop Chain
Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Transmission
Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)
Brakes
Amflow HMA-30
Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready
Spokes: SAPIM E-Light Straightpull
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T
Wheels
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
Tires
Amflow Enduro Alloy Handlebar
35mm rise, 800mm wide
5-degree upsweep, 9-degree backsweep
Handlebar
Amflow Enduro Grips
Grips
Amflow Enduro Stem, One-piece CNC
Length: 35mm
Clamping diameter: 35mm
Stern
Ergon SM PRO M/L
Saddle
Fox Transfer Factory, Travel adjustable in 5mm
M: 125-150mm
L/XL: 155-180mm
XXL: 185-210mm
Seatpost
Quick Start Guide
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Front and Rear Lights
Accessories

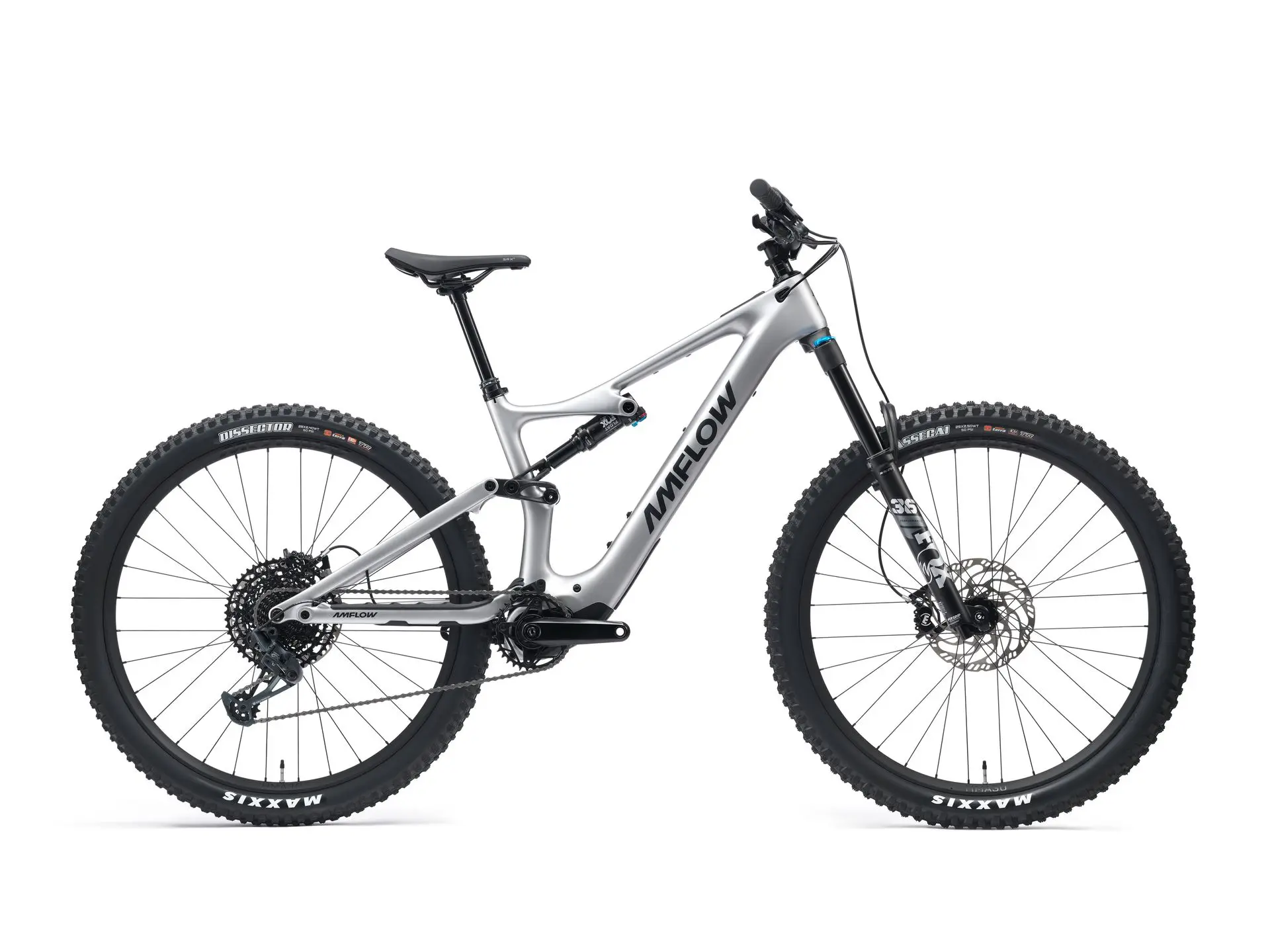

Amflow PL Carbon (800Wh)
Amflow PL carbon Frame
Satin Silver
150mm rear travel
Compatible with 27.5" and 29" rear wheels
Frame
Avinox M1 Drive Unit: 105 N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
E-Bike System
FOX Float Performance
Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever
Rear Shock
FOX 36 Performance
160mm travel, GRIP Damper, 15×110mm, 44mm rake
Fork
Rear Derailleur: SRAM GX Eagle 12-speed
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers: SRAM GX Eagle Trigger Shifter｜Single Click
Cassette: SRAM PG-1230, 11-50T
Chain: SRAM NX Eagle
Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Transmission
Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)
Brakes
Amflow HMA-30
Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready
Spokes: SAPIM E-Light J-bend
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Wheels
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
Tires
Amflow Enduro Alloy Handlebar
35mm rise, 800mm wide
5-degree upsweep, 9-degree backsweep
Handlebar
Amflow Enduro Grips
Grips
Amflow Enduro Stem, One-piece CNC
Length: 35mm
Clamping diameter: 35mm
Stern
Selle Royal SRX Plus
Saddle
KS Rage-i
M: 150mm
L: 170mm
XL/XXL: 190mm
Seatpost
Quick Start Guide
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Front and Rear Lights
